TM Pressure-relief Lubricant Pump
Function & Features:
- May issue the instruction or by the pump computer hypothesis intermittence and the lubrication time by PLC.
- The pump picks the high-speed operation, the pressure current capacity stable, can be effective transports the oil to each lubricant point.
- Is equipped with the oil level to examine knows and the pressure picks out, can at the right moment detect the oil mass and the unusual warning.
- The pump is the high pressure, escapes presses the type, the coordinate quota volume type divider, can effective achieve fixed time, the constant pressure, the quota lubrication effect.
- Suits various types lubrication and oil quality of the higher viscosity.
- Overcomes large-scale radio station many scotomas.
Specification:
Specification:
Model | Outlet | Valtage | Float switch | Pressure release unit | Pressure applied | Release time | Running time |
---|---|---|---|---|---|---|---|
TM-301FW | 0.3/0.36 L/ min | 110V | O | O | 1-15 kgf/cm2 | PLC控制 | PLC控制 |
TM-302FW | 220V | O | O | ||||
TM-301CFW | 110V | O | O | 1-99分 | 1-99秒 | ||
TM-302CFW | 220V | O | O |

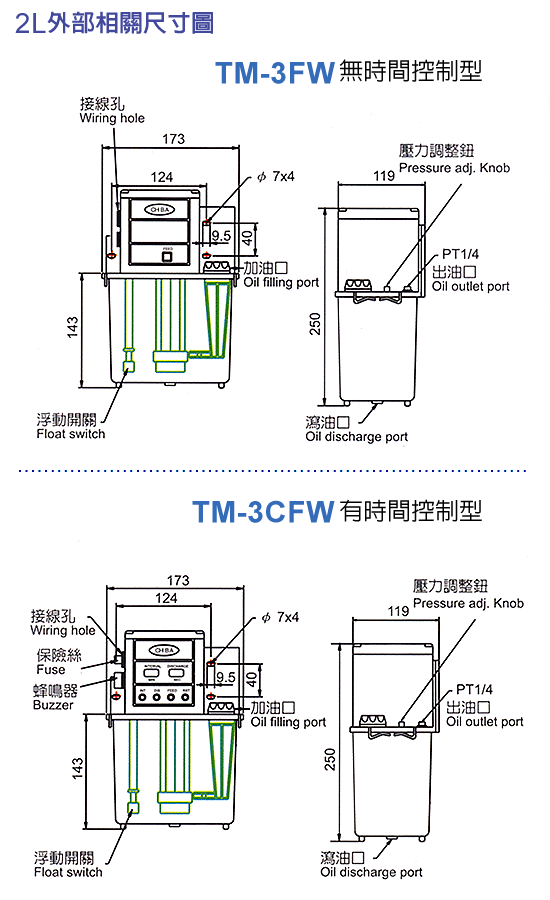

3L~12LOutside Specification:
Model | AxB (mm) | L | W | H | Tank Capacity |
---|---|---|---|---|---|
T-3L | 200×95 | 180 | 130 | 150 | 3.10L |
T-4L | 240×110 | 210 | 130 | 150 | 4.09L |
T-6L | 320×110 | 280 | 145 | 150 | 6.09L |
T-8L | 340×110 | 300 | 180 | 150 | 8.10L |
T-10L | 370×110 | 320 | 180 | 150 | 10.10L |
T-12L | 390×110 | 350 | 230 | 150 | 12.07L |
